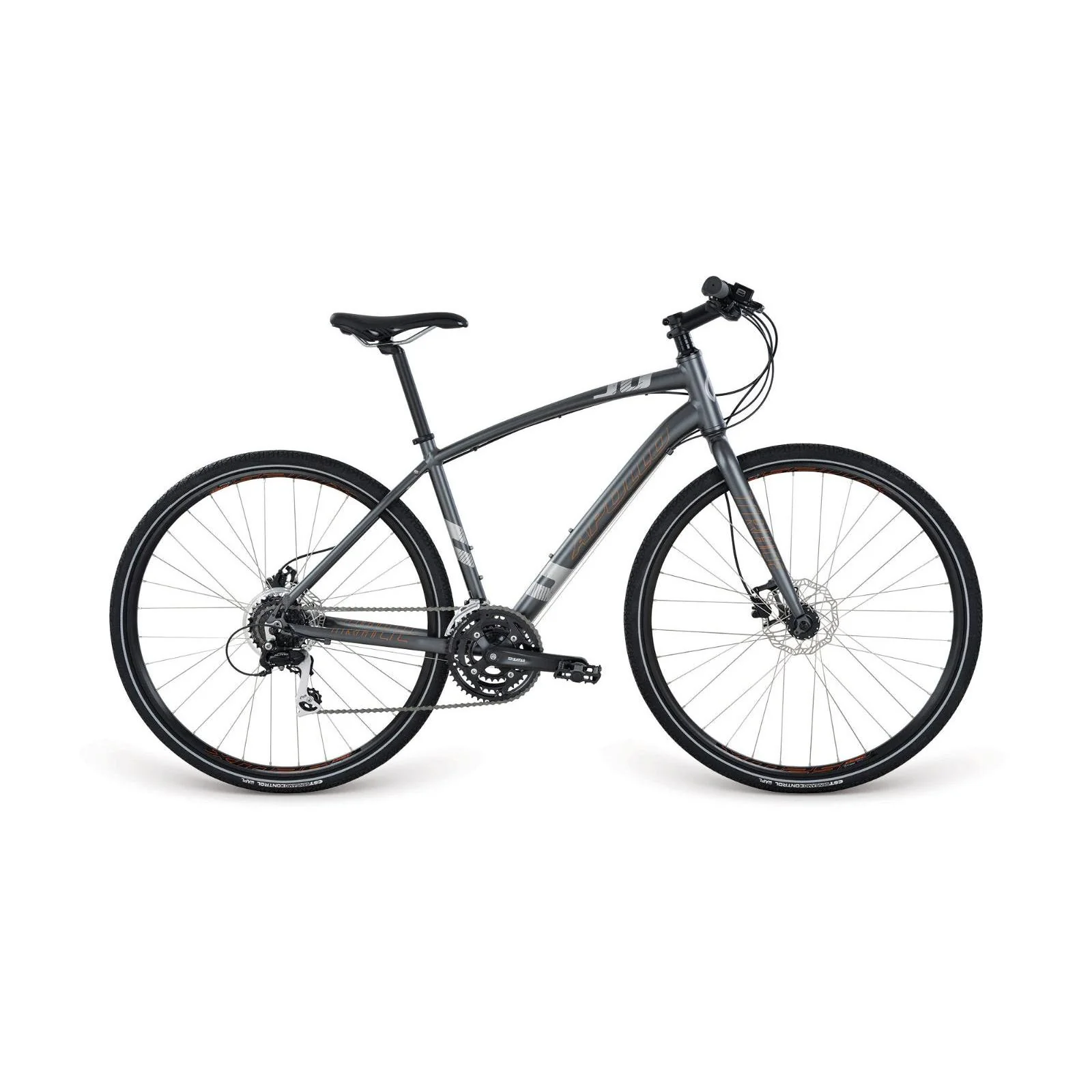

Apollo Trace 30 Flat Bar Road Bike Charcoal/Silver/Orange (2017)
The Apollo Trace 30 Flat Bar Road Bike has been designed with comfort and practicality in mind.
ABOUT THE TRACE:
SPECIFICATIONS:
| FRAME | Triple butted 6061 frame with smooth welding. Integrated head tube, pannier mounts and replaceable derailleur hanger. |
| FORK | Alloy 700c disc specific commuter fork with rack and fender mounts |
| REAR SHOCK | |
| HEADSET | A-head semi integrated 1-1/8" with 10mm cone spacer |
| HANDLEBAR | Alloy low riser, bore: 31.8mm, W: 600mm, sweep: 6° |
| GRIP | Kraton ERGO comfort grip |
| HEADSTEM | 4 bolt alloy stem, 31.8mm, S=90mm, M/L/XL=105mm |
| CRANKSET | Suntour XCE 48 x 38 x 28T L: S/M=170mm, L/XL=175mm |
| BOTTOM BRACKET | Cartridge bottom bracket |
| PEDALS | Low profile high impact resin |
| F.DERAILLEUR | Shimano M191 8 speed for 31.8 |
| R.DERAILLEUR | Shimano Alivio 8 speed |
| SHIFT LEVERS | Shimano Altus 24 speed Rapid Fire |
| FREEWHEEL | Shimano 8 speed cassette 12-32T |
| CHAIN | KMC Z-7 |
| BRAKES | Promax Decipher hydraulic disc brakes with reach adjust, 160mm rotors |
| WHEELS | Weinmann XM25 double wall disc specific rims, 32 hole A/V, alloy quick release disc hubs with stainless spokes |
| TYRES | CST Sensamo 700 x 40c 30tpi, puncture protection belt and reflective side walls |
| SADDLE | Factor Ergotech dual density saddle |
| SEATPOST / CLAMP | Alloy twin bolt micro adjust 27.2mm |
| EXTRAS | N/A |
| COLOURS | Matte Charcoal / Matte Silver / Matte Orange |
SPECIFICATIONS:
| S | M | L | XL | |
| STACK | 530 | 555 | 576 | 595 |
| REACH | 393 | 411 | 424 | 432 |
| EFFECTIVE TOP TUBE LENGTH | 550 | 575 | 600 | 620 |
| SEAT TUBE (CENTRE TO TOP) | 400 | 457 | 508 | 560 |
| SEAT ANGLE | 73.5° | 73.5° | 73.0° | 72.5° |
| HEAD TUBE LENGTH | 130 | 155 | 175 | 195 |
| HEAD ANGLE | 71.0° | 71.5° | 72.0° | 72.0° |
| WHEEL BASE | 1040 | 1060 | 1075 | 1090 |
| CHAIN STAY LENGTH | 440 | 440 | 440 | 440 |
| BB DROP | 60 | 60 | 60 | 60 |
| FORK RAKE | 45 | 45 | 45 | 45 |
| AXLE TO CROWN | 385 | 385 | 385 | 385 |
| REAR DROPOUT SPACING | 135 | 135 | 135 | 135 |
AVAILABLE ONLINE (CLICK & COLLECT)/ IN-STORE
