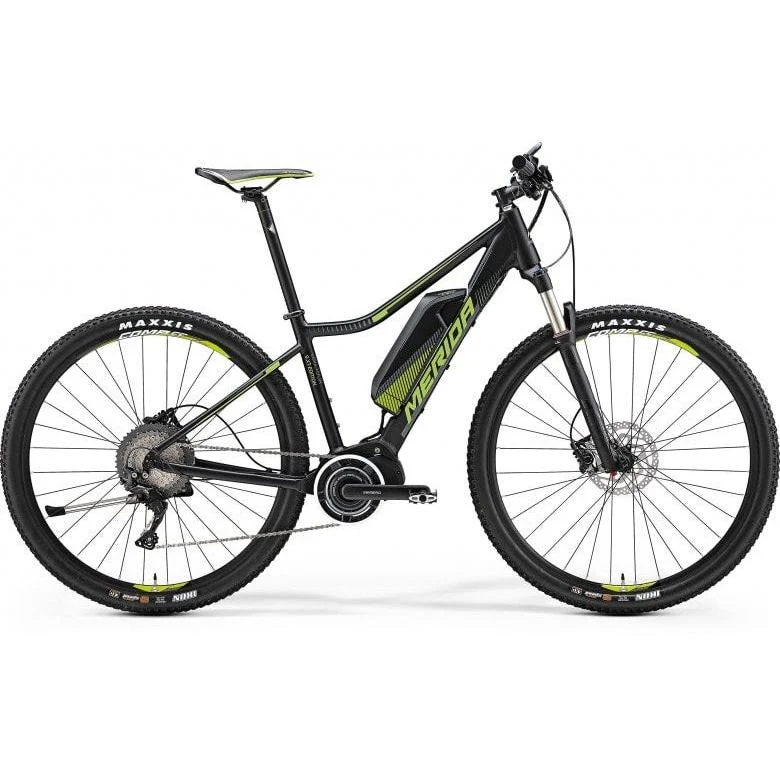

Merida E-Big Tour 9 XT Edition Electric Bike (2017)
The E-Big Tour XT is a Merida E-Bike designed with a Shimano Steps Motor for added power. One of the lightest weight motors on the market, with amazing torque to get you climbing up hills and tricky terrain with ease.
Handy Information on purchasing an E-Bike as well as Information on Australian Legislation can be found here
SPECIFICATIONS:
| Frame | eBig Tour 29er |
| H/set | Big Conoid A-bearing neck |
| Spacer | 10*2 |
| Compressor | attached |
| Fork | Rock Shox RECON GOLD RL 29 15 100 |
| Shock | |
| Seat Clamp | Hollow Allen lite |
| Seat Post | MERIDA Expert H SB15 30.9 |
| Protector CS | attached |
| BB Set | includes |
| Chainwheel | Shimano 38 DCG |
| Crank | Shimano E6000 |
| Chain | KMC X11 |
| Freewheel | Shimano XT 11-46 11s |
| Pedal | XC pro alloy |
| Hub-F | Shimano Deore 15 cen |
| Axle-F | attached |
| Hub-R | Shimano Deore cen |
| Axle-R | QR |
| Rim | Merida Big Nine comp CC |
| Rim Tape | attached |
| Spoke | Black stainless |
| Spoke Disc | attached |
| Tire-F | Maxxis Ikon 29 2.2 fold + EXO Protection |
| Tire-R | Maxxis Ikon 29 2.2 fold + EXO Protection |
| Inner Tube | Ultralite-29er |
| Brake Lever | attached |
| Brake-F | Shimano M506 |
| Rotor-F | RT20 180 cen |
| Brake-R | Shimano M506 |
| Rotor-R | RT20 180 cen |
| dera-F | no |
| dera-R | Shimano XT GS Shadow+ |
| shifter-F | no |
| shifter-R | Shimano XT 11 |
| shifter-clamp | attached |
| adjuster | |
| cable housing | MTK700 SP40 |
| [Cockpit] | |
| Grip/Tape | MERIDA Screw on-Single |
| H/bar | MERIDA EXPERT OS 720 R10 |
| H/stem | MERIDA Expert OS +6 |
| Saddle | Merida Sport 5 |
| Reflector | DIN |
| Ref.bracket | attached |
| Bell | Alloy |
| Hardware | stainless |
| Decal | under coating |
| Carton | A5 [ebike] |
| Manual | Merida |
| Painting | attached |
| Display | Cyclo display |
| Switch | Mode Switch |
| Drive Unit | Engine [E6001] |
| Drive Cover | attached |
| eBattery | Battery E6010 418Wh |
| eBattery holder | E6000 on frame |
| eBattery charger | Charger |
| eBattery lock | Abus key |
| Engine cover | E6000 cover |
| e wire | Standard 2 [E6000/E8000] |
| Motor Unit | |
| Fender | |
| Carrier | |
| Kickstand | Stylo HV Urban |
| Dynamo | |
| Light-Front | CG-119PG-BLACK(1) |
| Light-Rear | CG-404RG |
| Lock | Abus 5650 LH-3 lock |
ENGINE/MOTOR SPECIFICATIONS: SHIMANO STEPS
Drive Unit:
- Weighs just 3.2kg – one of the lightest units on the market
- Produces 50Nm of torque for amazing hill climbing
- Smooth, quiet and powerful assistance
- Intelligent power assistance gives an easy, natural feeling
- Walk assist mode for extra support while walking next to the bike
- With START MODE (Di2 only), automatically shifts down to a lower gear as you stop ready for an easy start
- Three types of power support modes, ECO, NORMAL & HIGH
Display:
- Standard bike computer functions
- Gear indication
- Range indication
- Battery indication
- Multiple mounting options, with different angles and positions:
Battery:
- Available for either rear carrier (2.550g) or down tube mounting (2.660g)
- High 418Wh capacity (36V, 11.6Ah)
- 1000 charge cycles without significant power loss.
- Provides range of up to 125km 's (ECO mode) up to 80km's (NORMAL mode) and up to 60km's (HIGH mode)
- Charges in four hours
GEOMETRY:
| FRAME SIZES | M(29) | L(29) | XL(29) |
| TOP TUBE | 580 | 600 | 620 |
| SEAT TUBE | 440 | 480 | 520 |
| CHAIN STAYS | 470 | 470 | 470 |
| HEAD TUBE ANGLE | 69.5 | 69.5 | 69.5 |
| SEAT TUBE ANGLE | 73 | 73 | 73 |
| BOTTOM BRACKET DROP | 70 | 70 | 70 |
| HEAD TUBE LENGTH | 135 | 145 | 155 |
| FORK LENGTH | 506 | 506 | 506 |
| REACH | 374 | 397 | 414 |
| STACK | 654 | 664 | 673 |
| WHEEL BASE | 1112 | 1133 | 1154 |
| STAND OVER HEIGHT | 703 | 734 | 765 |
Additional Information on E-Bikes can be found here
