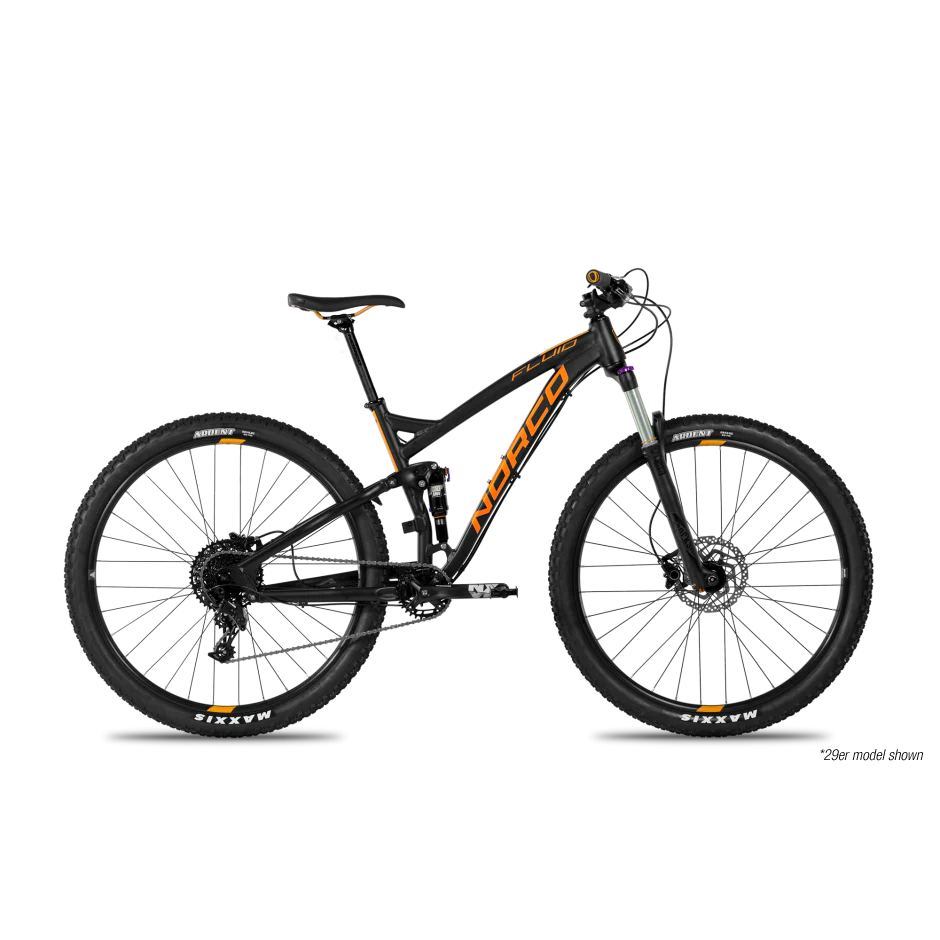

The Fluid Full Suspension lets you choose your perfect trail weapon. Every bike in the Fluid family is designed around its respective wheel size – no geometry compromises here. With trail-tuned A.R.T. suspension the Fluid snaps around corners, explodes up technical climbs, and flows through rocky, rooty descents. This truly is a bike for those looking to take their trail riding experiences to the next level. Find your sweet spot with the Fluid.

Specifications

• FRAME Fluid aluminum w/120 mm travel
• FORK Rockshox Recon RL Silver Solo 120mm 15x110mm boost
• REAR SHOCK Rockshox Monarch R HVI High Volume Eyelet
• FRONT HUB Alloy disc w/15 mm with sealed bearing
• REAR HUB Joy tech disc hub w/QR 10/11sp cassette
• SPOKES/NIPPLES Stainless Steel 14g, Black
• RIMS WTB I25 32H, 25mm inner , TRS tubeless
• FRONT TIRE WTB Vigalante 27.5x2.3
• REAR TIRE WTB Beeline 27.5x 2.2
• SHIFTER REAR Shimano Deore SLM-6000 10spd
• REAR DERAILLEUR Shimano Deore M6000 Shadow Plus SGS 10 speed
• CASSETTE Sunrace CSMS2 Black 10sp 11-42T Cassette
• CRANKSET SR Suntour Zeron Boost 30T Cranks w/1X narrow/wide ring
• BOTTOM BRACKET SR Suntour cartridge BB
• PEDALS Wellgo resin body / alloy black cage MTB pedal
• CHAIN KMC X 10
• SEAT POST Norco 6061 alloy double bolt 30.9 x 350mm
• SEAT POST CLAMP Norco design alloy nutted clamp w/cable guide
• SADDLE WTB Volt Sport trail saddle
• HEADSET FSA #57B tapered internal
• HEADSET SPACER 3x10mm / 1x5mm / 1 x 2.5mm
• STEM Alloy MTB stem with 4 bolt front clamp
• HANDLEBAR Norco 25mm rise 6061 DB alloy 760mm
• GRIPS Norco Gator grip
• FRONT BRAKE Tektro Hydraulic Disc brake HD-M285 w/180mm
• REAR BRAKE Tektro Hydraulic Disc brake HD-M285 w/160mm
• BRAKE LEVERS Tektro HD-M285
